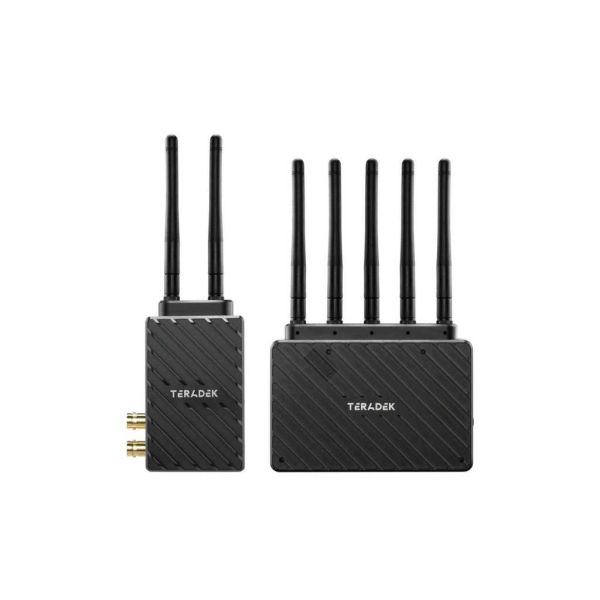

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
In stock
Professional zero-delay wireless video transmission system with 6GHz technology; delivers 4K HDR video, ultra-reliable signal, and seamless HDMI/SDI connectivity for high-end film production.
Specification
Details
Video Resolution
Up to 4K UHD (4K30)
Video Inputs
HDMI, 3G-SDI
Video Outputs
HDMI, 3G-SDI
Supported Formats
480i to 4K UHD
Frame Rate
Up to 60fps (1080p), 30fps (4K)
Transmission Range
Up to 750 ft (≈228 m LOS)
Latency
0 ms (Zero Delay)
Wireless Frequency
6 GHz + 5 GHz Compatibility
Color Support
10-bit 4:2:2 HDR (Rec.2020)
Transmission Technology
Bolt Wireless Protoco
Display
OLED Display (TX & RX)
Audio Support
Embedded HDMI/SDI Audio
Control Interface
Buttons + Mobile App (Bluetooth)
Multi-Receiver Support
Up to 6 Receivers
Streaming Support
No
Recording Support
No
Storage Media
Not Supported
USB Ports
Micro-USB / USB
HDMI Ports
1 Input / 1 Output
SDI Ports
1 Input + Loop Out / 1 Output
Power Consumption
TX: ~9W / RX: ~11W
Build Material
Metal Alloy
Mounting
1/4"-20 Threads
Dimensions
Compact Professional Design
Weight
Approx. 300–350 g per unit (varies by configuration)
Operating Temperature
Production-grade operation
Included Accessories
Transmitter, Receiver, Antennas, Cables, Power Adapter
Warranty Period
1 Year
Warranty Type
Manufacturer Warranty
Service Support
Authorized Service Centers
