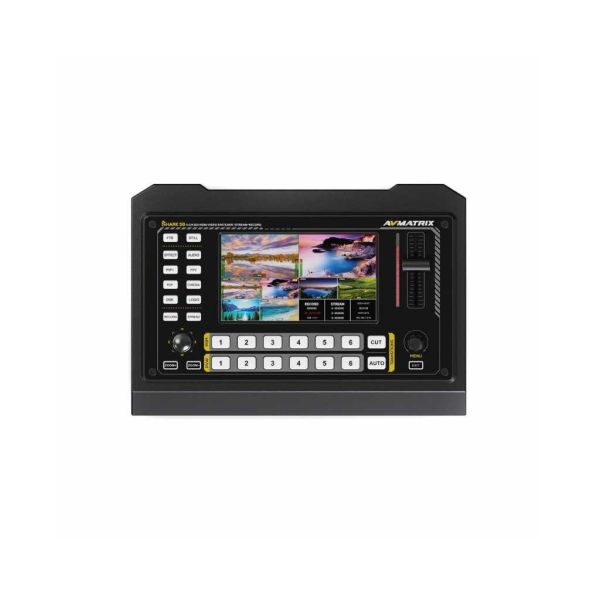

AVMatrix Shark S6 6-Channel HDMI/SDI Video Switcher
In stock
Compact 6-channel HDMI/SDI video switcher with built-in 5″ display, live streaming, recording, and professional multi-camera production features.
| Specification |
Details |
| Video Inputs |
4 × 3G-SDI + 2 × HDMI |
| Video Outputs |
2 × SDI, 1 × HDMI Program, 2 × SDI AUX, 1 × HDMI Multiview |
| Supported Resolution |
Up to 1080p60 |
| Display |
5″ LCD Built-in Monitor |
| Streaming |
RTMP / RTSP / SRT via Ethernet |
| Recording |
USB Drive / SD Card (MJPEG / MP4) |
| USB Interface |
USB-C (Capture & Webcam Output) |
| Audio Inputs |
2 × Mic + Embedded SDI/HDMI Audio |
| Audio Mixer |
Multi-channel Digital Audio Mixer |
| Keyers |
Chroma Key, Luma Key, Downstream Key |
| Effects |
PiP, PoP, Logo Overlay, Mix / Dip / Wipe Transitions |
| PTZ Control |
VISCA, VISCA over IP, Pelco-D/P, ONVIF |
| Control Options |
Hardware Panel + T-Bar |
| Multiview |
Yes |
| Network |
Ethernet (Streaming & Control) |
| Latency |
Low Latency Switching |
| Build Type |
Portable Compact Design |
| Weight |
Approx. 2.0 – 2.5 kg (Estimated Class Weight) |
| Warranty |
2 Year Manufacturer Warranty |
