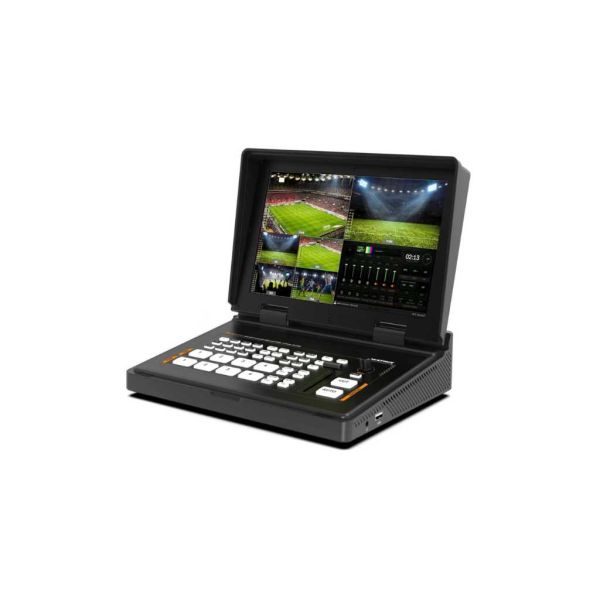

AVMATRIX Shark S4 PLUS 4-Channel HDMI Video Switcher with 10.1″ IPS Display
In stock
Portable 4-channel video switcher with built-in 10.1″ IPS display, streaming, recording, and professional switching features for live production.
| Specification |
Details |
| Video Inputs |
2 × HDMI + 2 × 3G-SDI |
| Video Outputs |
2 × HDMI Program Out, 1 × HDMI Multiview |
| Supported Resolution |
Up to 1080p60 |
| Display |
10.1″ IPS LCD (1920 × 1080) |
| Streaming |
RTMP / SRT via Ethernet |
| Recording |
USB Drive / SD Card (MP4) |
| USB Interface |
USB-C (Capture & Streaming) |
| Audio Inputs |
2 × 3.5mm Mic/Line + Embedded HDMI/SDI Audio |
| Audio Mixer |
2-Channel Digital Mixer |
| Keyers |
Chroma Key, Luma Key |
| Effects |
PiP, PoP, Logo Overlay, Wipe / Mix / Dip Transitions |
| Control Options |
Hardware Buttons, T-Bar, LAN Control Software |
| Media Library |
Built-in patterns & image import support |
| Network |
Ethernet (Streaming + Control) |
| Latency |
Low-Latency Switching |
| Build Type |
Foldable Portable Design with Integrated Screen |
| Weight |
Approx. 3.5 – 4.0 kg (Estimated Class Weight) |
| Warranty |
3 Year Manufacturer Warranty |
