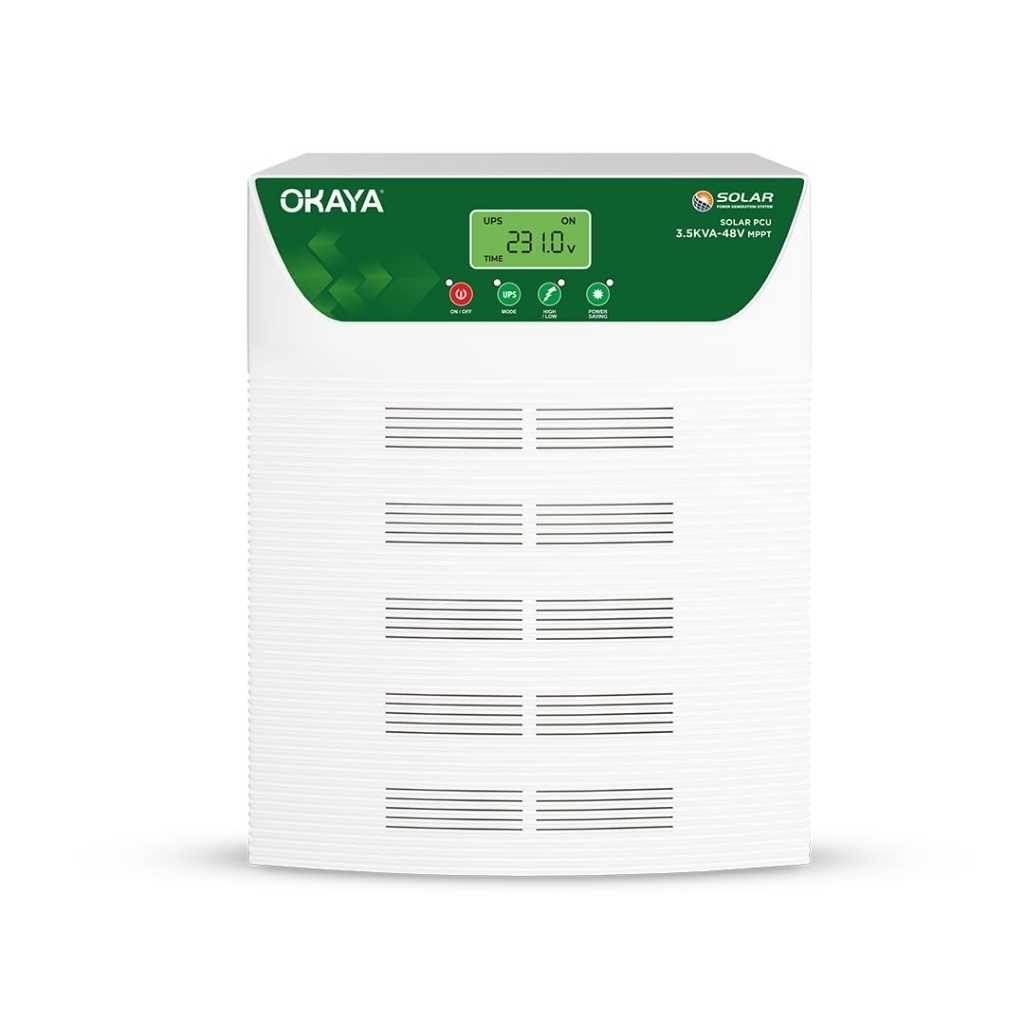

Okaya 3.5KVA 48V MPPT Solar PCU Dual Interleaved True Sine Wave Off-Grid Solar Inverter
SKU: OKAYA-3.5KVA-48V-MPPT-SOLAR-PCU
Okaya 3.5KVA 48V MPPT Solar PCU Dual Interleaved True Sine Wave Off-Grid Solar Inverter
₹70,000.00
In stock
Okaya 3.5KVA 48V MPPT Solar PCU features dual interleaved MPPT technology and true sine wave output for efficient solar charging and reliable off-grid power for homes, offices, and shops, backed by a 36-month warranty.
Only 5 currently available.
About item
- SKU:
- OKAYA-3.5KVA-48V-MPPT-SOLAR-PCU
- Weight:
- 31 kg
Guaranteed Safe Checkout
VISA●●PayPalDISCOVERPayG Pay
| Specification | Value |
|---|---|
| Brand | Okaya |
| Product Model | SOLAR-MPPT-3.5KVA-48V |
| Product Type | Off-Grid Solar PCU |
| Rated Power | 3500 VA / 3.5 kVA |
| Max PV Input | 4900–5360 W, as listed on the product page |
| Phase | Verify with manufacturer |
| Battery Voltage | 48V DC |
| Solar Controller Type | Dual Interleaved MPPT |
| MPPT Efficiency | Up to 98% |
| Maximum PV Input Current | 40 A |
| PV Open-Circuit Voltage Range | 84–195 V |
| PV Output Charging Current | Up to 105 A |
| Output Waveform | Pure Sine Wave |
| Battery Configuration | 4 × 12V batteries |
| Battery Compatibility | Tubular and SMF |
| Display Type | LCD + LED indicators |
| Display Information | Battery voltage, solar current, load and system status |
| Charging Control | Intelligent solar charging |
| Power Management | Adaptive power priority |
| Power-Saving Feature | Intelligent Power Saver Mode |
| Changeover Time | Up to 10 ms in UPS mode |
| Protection Features | Low battery, overload and short circuit |
| Solar Protection | PV reverse-polarity protection |
| Thermal Protection | Over-temperature protection |
| Installation Type | Indoor |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 276 × 414.8 × 369.1 mm |
| Net Weight | 31 kg |
| Warranty | 36 months |
