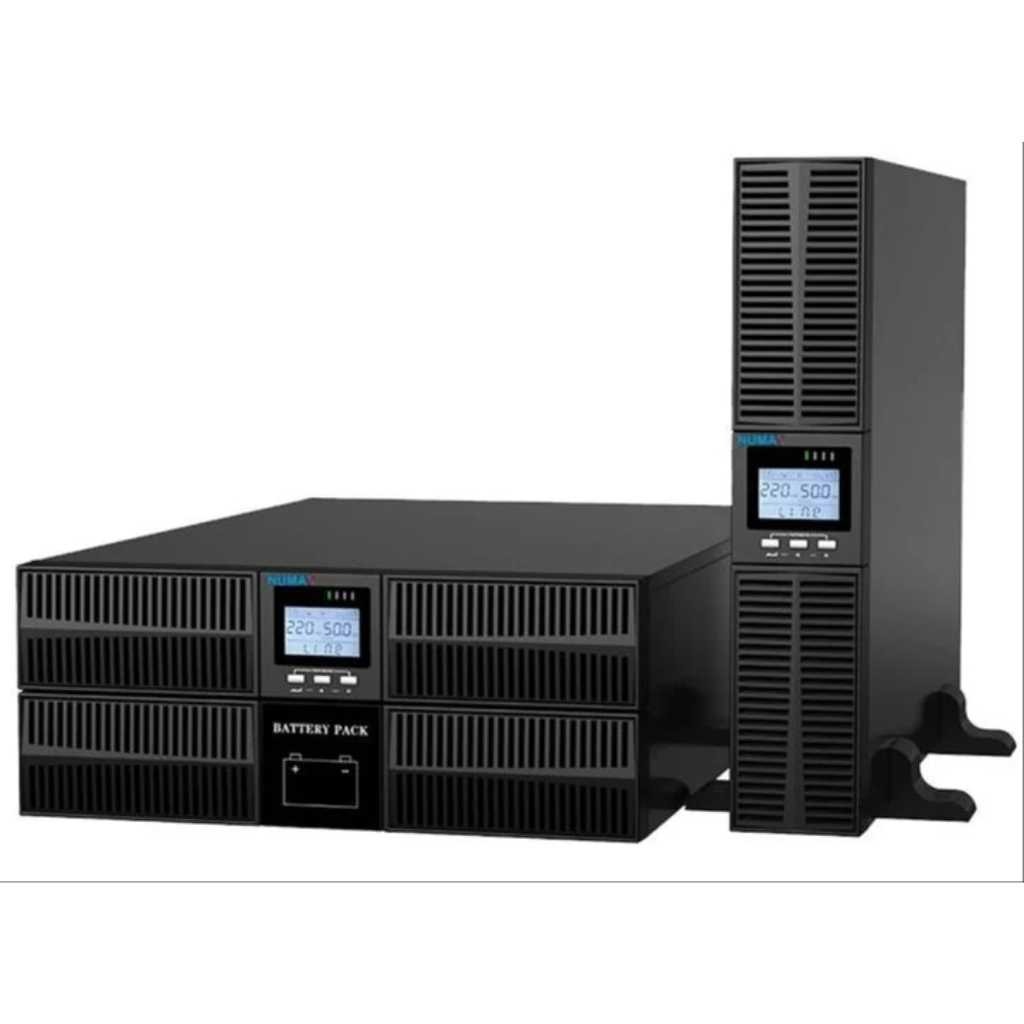

Numax Rack Model 20 KVA 3 Phase Online UPS

Hover to zoom. Tap or press Enter to toggle zoom.

Share product
WhatsAppFacebookEmail

SKU: NUMAX-RM-20KVA-3PH

Numax Rack Model 20 KVA 3 Phase Online UPS

₹2,85,000.00

In stock

Numax 20 KVA Rack Mount Online UPS provides continuous pure sine wave power with advanced DSP control technology for mission-critical applications.

Only 5 currently available.

Delivery & Return Ask a question

About item

SKU:
NUMAX-RM-20KVA-3PH
Weight:
26 kg

Guaranteed Safe Checkout

VISA●●PayPalDISCOVERPayG Pay
SpecificationValue
BrandNumax
ModelRack Model 20 KVA Online UPS
UPS TypeOnline Double Conversion UPS
Capacity20 KVA
Output Power18 KW
Input PhaseThree Phase
Output PhaseThree Phase
Power Factor0.9
TopologyDouble Conversion Online
Form FactorRack Mount
Rack CompatibilityStandard 19-inch Rack
Input Voltage Range304V – 478V AC
Input Frequency Range40Hz – 70Hz
Output Voltage380V / 400V / 415V AC
Output Frequency50Hz / 60Hz Auto Sensing
Output WaveformPure Sine Wave
Transfer Time0 ms
Battery TypeExternal VRLA / SMF / Tubular Batteries
DC Bus Voltage192V / 240V DC
Charging MethodIntelligent Multi-Stage Charging
Fast Charging SupportYes
Recharge Time6–8 Hours to 90% Capacity
LCD DisplayYes
LED Status IndicatorsYes
USB Communication PortYes
RS232 InterfaceYes
SNMP SupportOptional
Dry Contact PortOptional
Emergency Power Off (EPO)Yes
ECO ModeSupported
Online Mode EfficiencyUp to 95%
ECO Mode EfficiencyUp to 98%
Surge ProtectionYes
Overload ProtectionYes
Short Circuit ProtectionYes
Over Temperature ProtectionYes
Battery Deep Discharge ProtectionYes
Intelligent Battery ManagementYes
Generator CompatibilityYes
Parallel Redundancy SupportYes
Noise LevelLess than 60 dB
Operating Temperature0°C to 40°C
Humidity0–95% Non-Condensing
Cooling SystemForced Air Cooling
CertificationsISO, CE, IEC Compliant
ApplicationData Centers, Telecom Equipment, Industrial Systems, Network Infrastructure, Healthcare Equipment
