MuscleGrid 6.2kW Hybrid Solar Inverter with 51.2V 314Ah Battery Combo
SKU: MUSCLEGRID-6.2KW-HYBRID-51.2V-314AH
MuscleGrid 6.2kW Hybrid Solar Inverter with 51.2V 314Ah Battery Combo
₹4,49,999.00
In stock
MuscleGrid 6.2kW Hybrid Solar Inverter with 9kW PV support and 51.2V 314Ah battery combo provides reliable solar backup with high-capacity energy storage for homes, offices and commercial applications.
Only 5 currently available.
About item
- SKU:
- MUSCLEGRID-6.2KW-HYBRID-51.2V-314AH
- Weight:
- 132 kg
Guaranteed Safe Checkout
VISA●●PayPalDISCOVERPayG Pay
| Specification | Value |
|---|---|
| Brand | MuscleGrid |
| Product Type | Hybrid Solar Inverter with Battery Combo |
| Model | 6.2kW Hybrid Solar Inverter |
| Rated Power | 6.2 kW |
| Maximum PV Input | 9 kW |
| Phase | Single Phase |

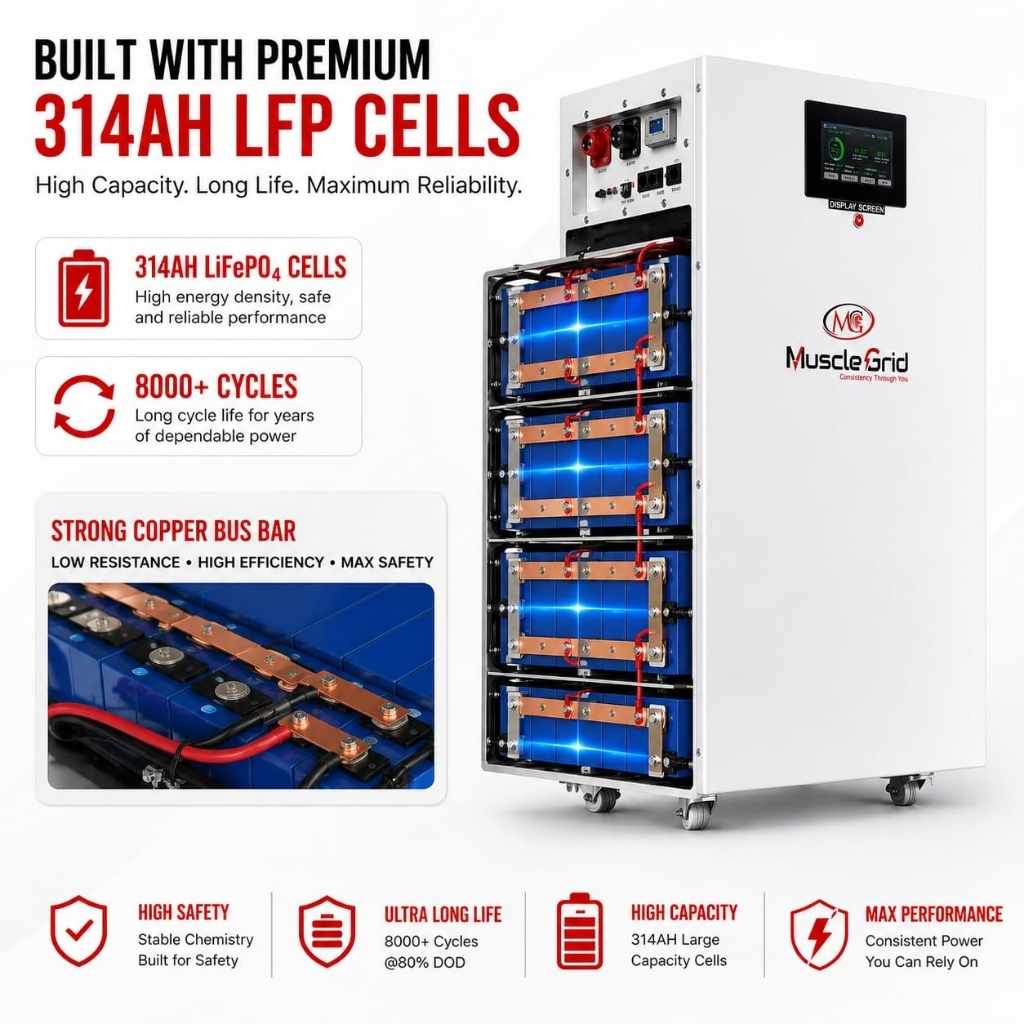

| Battery Voltage | 51.2 V |
| Battery Capacity | 314 Ah |
| Battery Energy | Approx. 16.08 kWh |
| Battery Type | Lithium Battery |
| Inverter Type | Hybrid Solar Inverter |
| Output Waveform | Pure Sine Wave |
| Solar Input | Supported |
| Grid Input | Supported |
| Battery Backup | Supported |
| Solar Charging | Yes |
| Maximum PV Support | 9 kW |
| Display | Large/Built-in Display |
| Protection Rating | IP43 |
| Energy Storage | High-Capacity Battery Storage |
| Solar Priority | Supported |
| Battery Management | Integrated BMS |
| Overload Protection | Yes |
| Short-Circuit Protection | Yes |
| Over-Voltage Protection | Yes |
| Over-Temperature Protection | Yes |
| Application | Home, Office & Commercial |
| Backup System | Solar + Battery Backup |
| Installation Type | Indoor/Protected Installation |

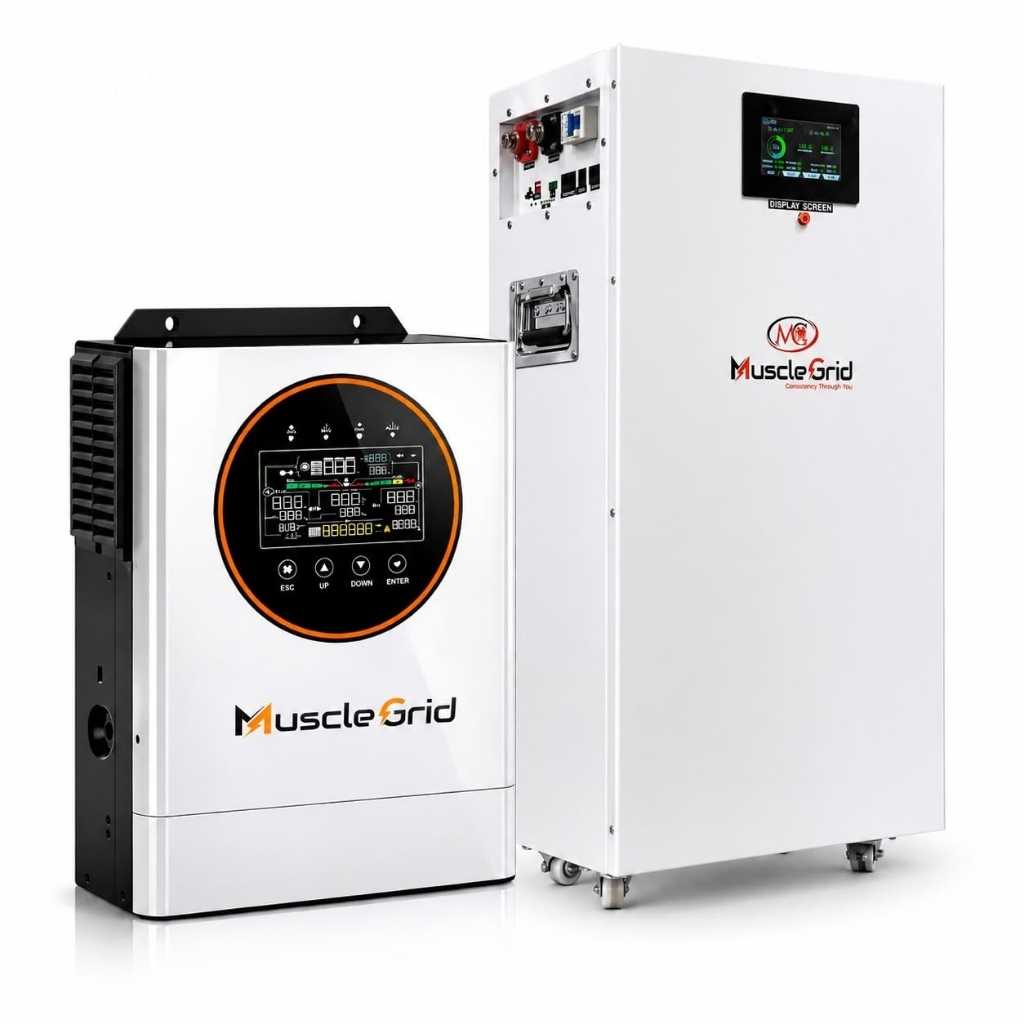

| System Configuration | Inverter + 51.2V 314Ah Battery Combo |
