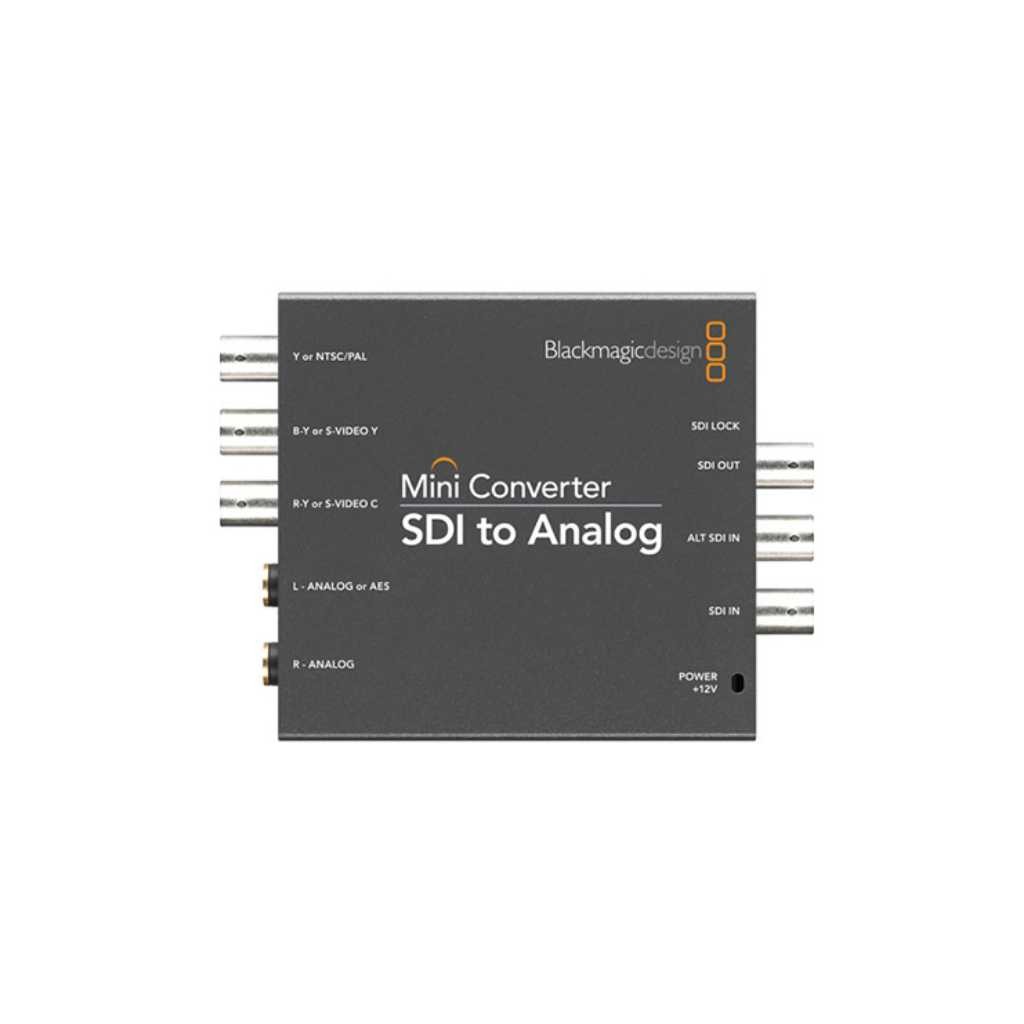

Blackmagic Design Mini Converter SDI to Analog
SKU: BMD-SDI-ANALOG
Blackmagic Design Mini Converter SDI to Analog
₹23,600.00
In stock
Professional SDI to analog converter with support for component, composite, and S-Video outputs with audio de-embedding. Ideal for connecting modern SDI equipment to legacy analog monitors and broadcast systems.
Only 4 currently available.
About item
- SKU:
- BMD-SDI-ANALOG
- Weight:
- 0.25 kg
Guaranteed Safe Checkout
VISA●●PayPalDISCOVERPayG Pay
| Attribute | Details |
|---|---|
| Video Input | 1 x SD/HD-SDI Input + 1 x SDI Loop Output |
| Supported Formats | SD & HD up to 1080p30 |
| Analog Outputs | Component (YUV), Composite (NTSC/PAL), S-Video |
| Down Conversion | Yes (HD to SD Supported) |
| Audio Output | 2 Channels Balanced Analog Audio |
| Audio De-Embedding | Yes (from SDI to Analog/AES) |
| Redundant Input | Yes (Auto Switch SDI Input) |
| SDI Rates | 270Mb, 1.5G |
| Connectivity | BNC, 1/4″ Audio |

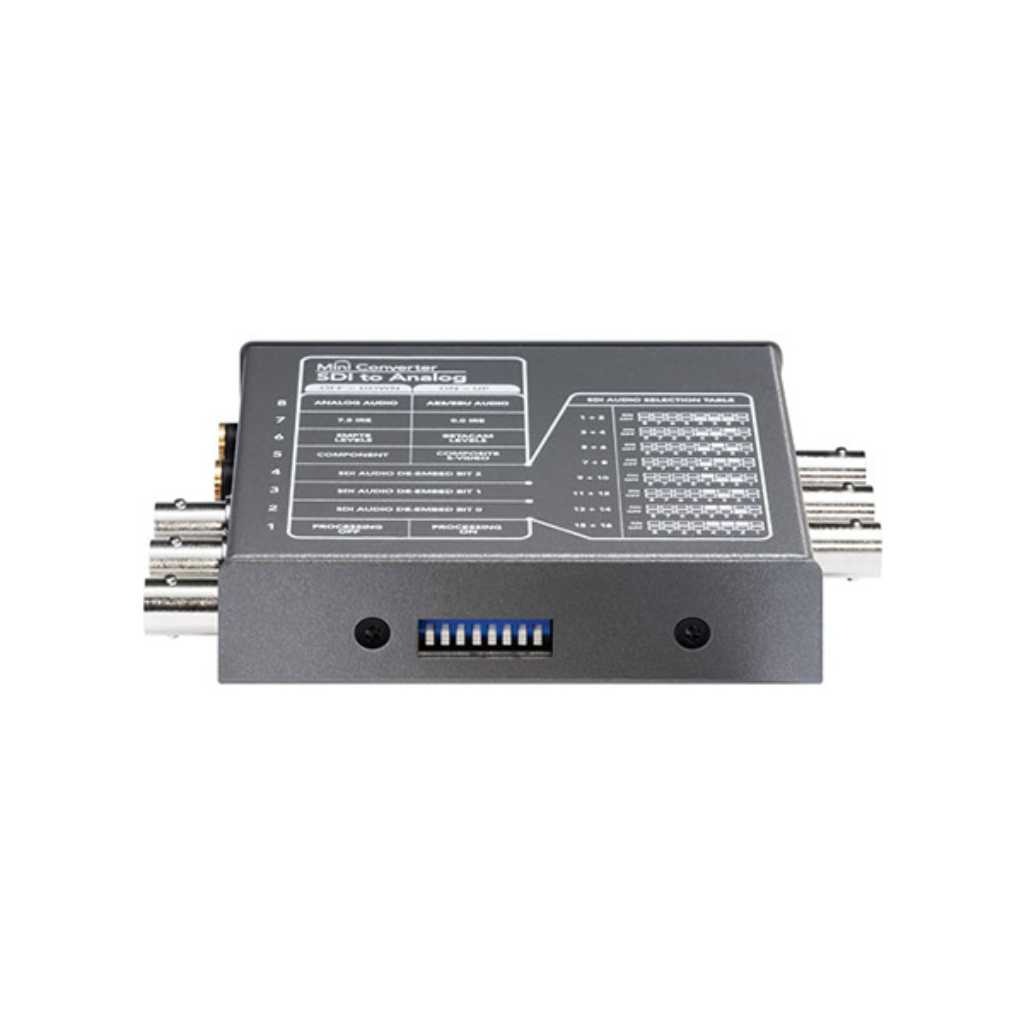

| Control | DIP Switch Configuration |
| Build | Compact Metal Design |
| Usage | Broadcast, Video Production, Legacy Equipment Integration |
| Warranty Period | 1 Year |
