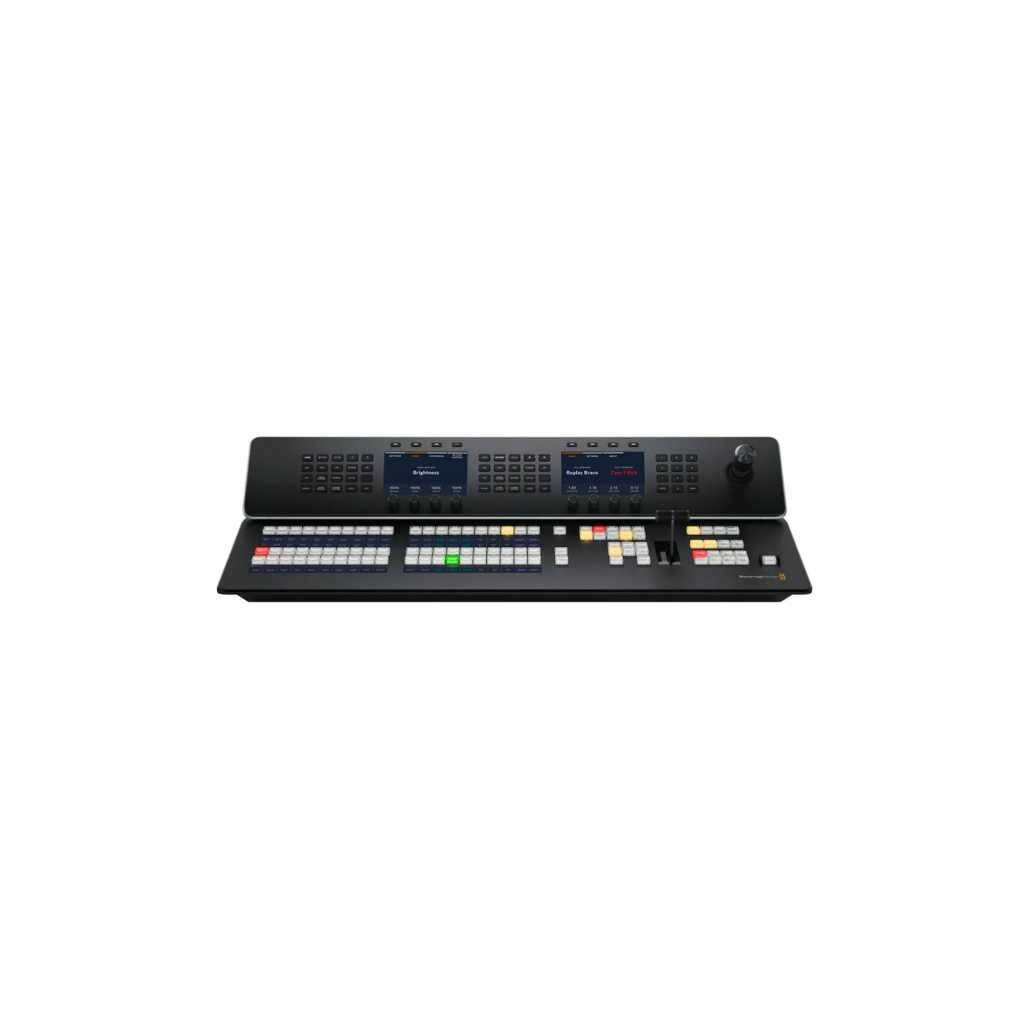

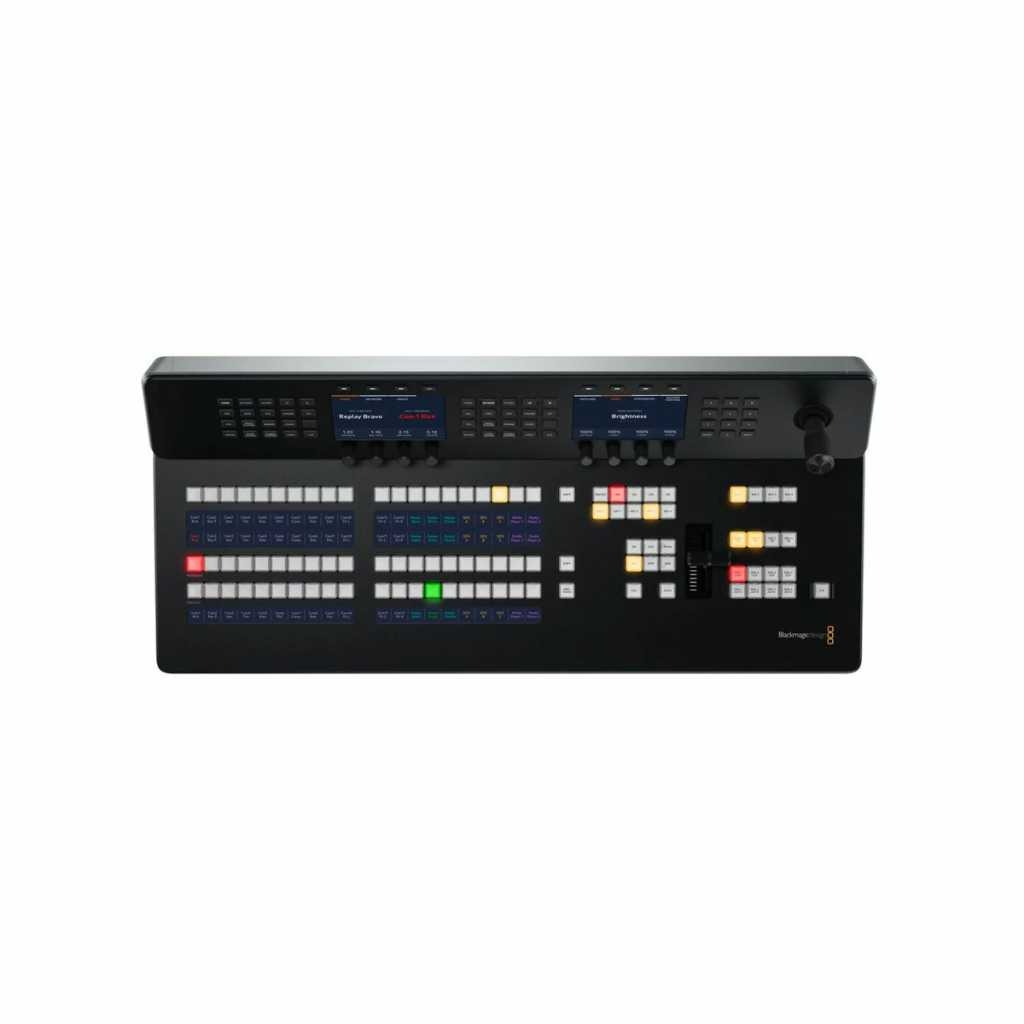

Blackmagic Design ATEM 1 M/E Advanced Panel 20
SKU: SWPANELADV1ME20
Blackmagic Design ATEM 1 M/E Advanced Panel 20
₹4,22,250.00
In stock
Professional hardware control panel with 20 input buttons, dual LCD displays, and advanced switching controls for precise live broadcast production.
Only 5 currently available.
About item
- SKU:
- SWPANELADV1ME20
- Weight:
- 5 kg
Guaranteed Safe Checkout
VISA●●PayPalDISCOVERPayG Pay
| Specification | Details |
|---|---|
| Control Type | Hardware Broadcast Control Panel |
| Input Buttons | 20 Programmable Crosspoints |
| Shifted Inputs | Up to 40 Crosspoints |
| Displays | 2 × System Control LCD Screens |
| Keyer Control | 4 × Upstream Keyers + 4 × Downstream Keyers |
| M/E Control | 1 M/E (Expandable Control up to 4 M/Es) |
| Transition Control | T-Bar + Auto/Cut Buttons |
| Joystick | 3-Axis Joystick for DVE Control |
| Custom Labels | LCD Displays on Input Buttons |
| Network | Built-in 4-Port Ethernet Switch |
| USB Interface | USB-C (Firmware Updates) |
| Redundant Power | Yes (Dual Power Inputs) |
| Build Type | Professional Broadcast Panel |
| Mounting | Rack-Mountable Design |
| Operating Temperature | 0°C to 40°C |
| Weight | Approx. 5 – 6 kg (Class Estimate) |
| Warranty | 1 Year Manufacturer Warranty |
