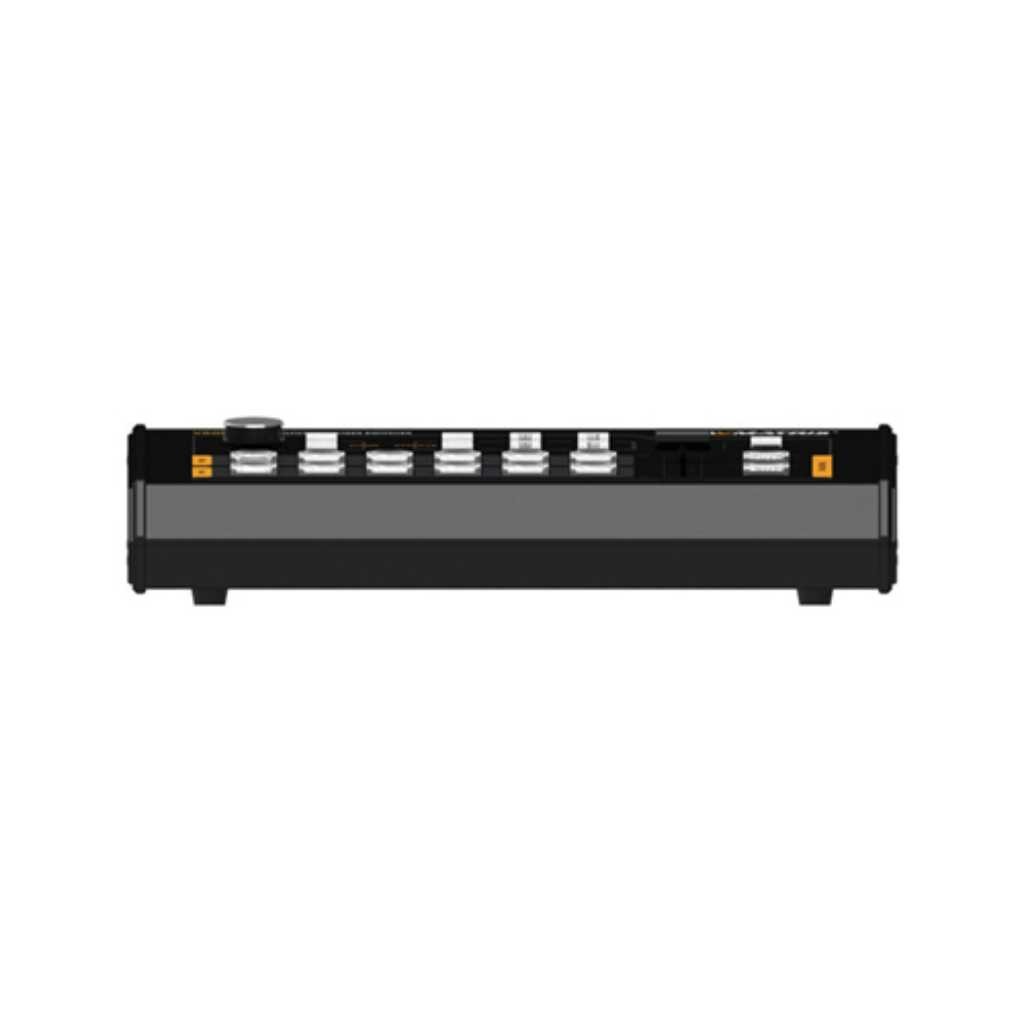

AVMatrix VS0601U Mini 6-Channel SDI/HDMI Multi-format Streaming Switcher
SKU: VS0601U
AVMatrix VS0601U Mini 6-Channel SDI/HDMI Multi-format Streaming Switcher
₹63,990.00
In stock
Compact 6-channel SDI/HDMI video switcher with USB-C streaming, multiview monitoring, and professional live production features.
Only 5 currently available.
About item
- SKU:
- VS0601U
- Weight:
- 1 kg
Guaranteed Safe Checkout
VISA●●PayPalDISCOVERPayG Pay
| Specification | Details |
|---|---|
| Video Inputs | 4 × 3G-SDI + 2 × HDMI |
| Video Outputs | 2 × SDI (PGM), 1 × HDMI (PGM), 1 × SDI AUX, SDI & HDMI Multiview |
| USB Output | USB-C (UVC Streaming Output) |
| Supported Resolution | Up to 1080p60 |
| Streaming | Via USB-C to PC (Zoom, YouTube, OBS, etc.) |
| Switching Type | T-Bar, Auto, Cut |
| Effects | Mix, Fade, Wipe, PiP/PoP |
| Audio Inputs | 3.5mm Stereo + RCA + Embedded HDMI/SDI Audio |
| Audio Outputs | 3.5mm Stereo + RCA |
| Audio Mixer | Built-in Digital Audio Mixer with AFV |
| Multiview | 6-Source Multiview (HDMI & SDI) |
| GPIO | Tally Interface Support |
| Frame Sync | Yes (Auto format detection) |
| Control Options | Hardware Panel |
| Latency | Low Latency Switching |
| Build Type | Compact Metal Portable Design |
| Dimensions | Approx. 249 × 172 × 55 mm |
| Weight | ≈ 1.2 kg |
| Warranty | 2 Year Manufacturer Warranty |
