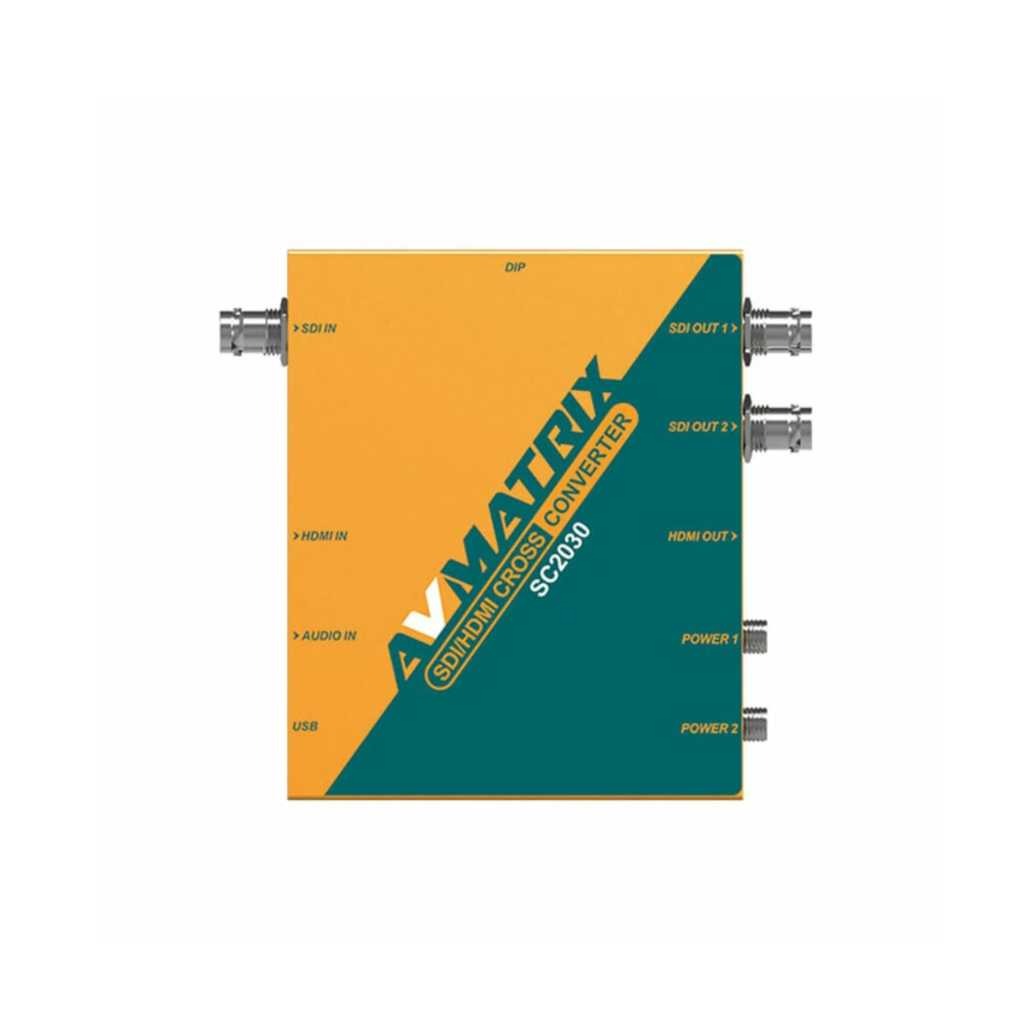

AVMatrix SC2030 3G-SDI/HDMI Scaling Cross Converter
SKU: SC2030
AVMatrix SC2030 3G-SDI/HDMI Scaling Cross Converter
₹25,990.00
In stock
Compact HDMI/SDI cross converter with scaling, frame rate conversion, and audio embedding for professional video signal conversion.
Only 5 currently available.
About item
- SKU:
- SC2030
- Weight:
- 0.485 kg
Guaranteed Safe Checkout
VISA●●PayPalDISCOVERPayG Pay
| Specification | Details |
|---|---|

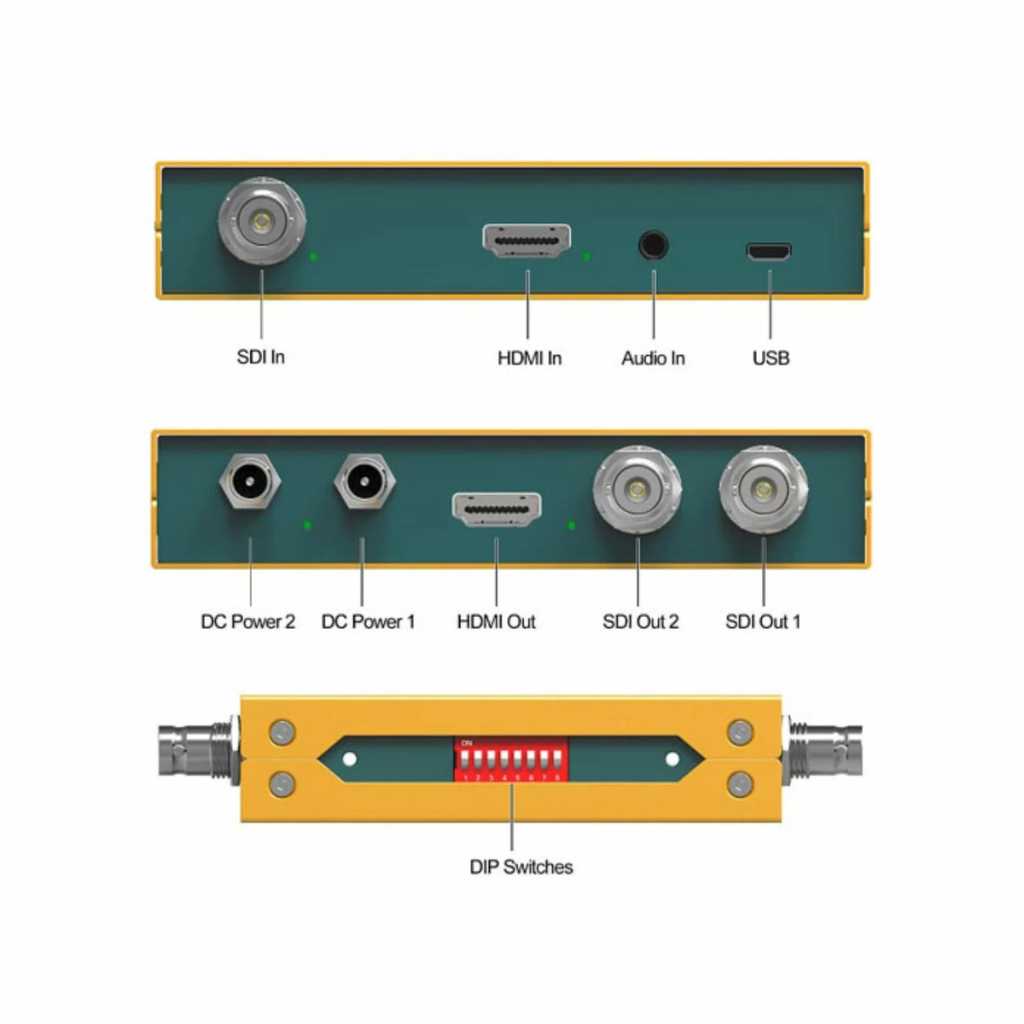

| Video Inputs | 1 × HDMI, 1 × 3G-SDI |
| Video Outputs | 1 × HDMI, 2 × 3G-SDI |
| Audio Input | 1 × 3.5mm Analog Audio |
| Supported Resolution | Up to 1080p60 |
| Scaling | Up/Down Scaling Supported |
| Frame Rate Conversion | Yes |
| Audio Embedding | Yes (HDMI & SDI Output) |

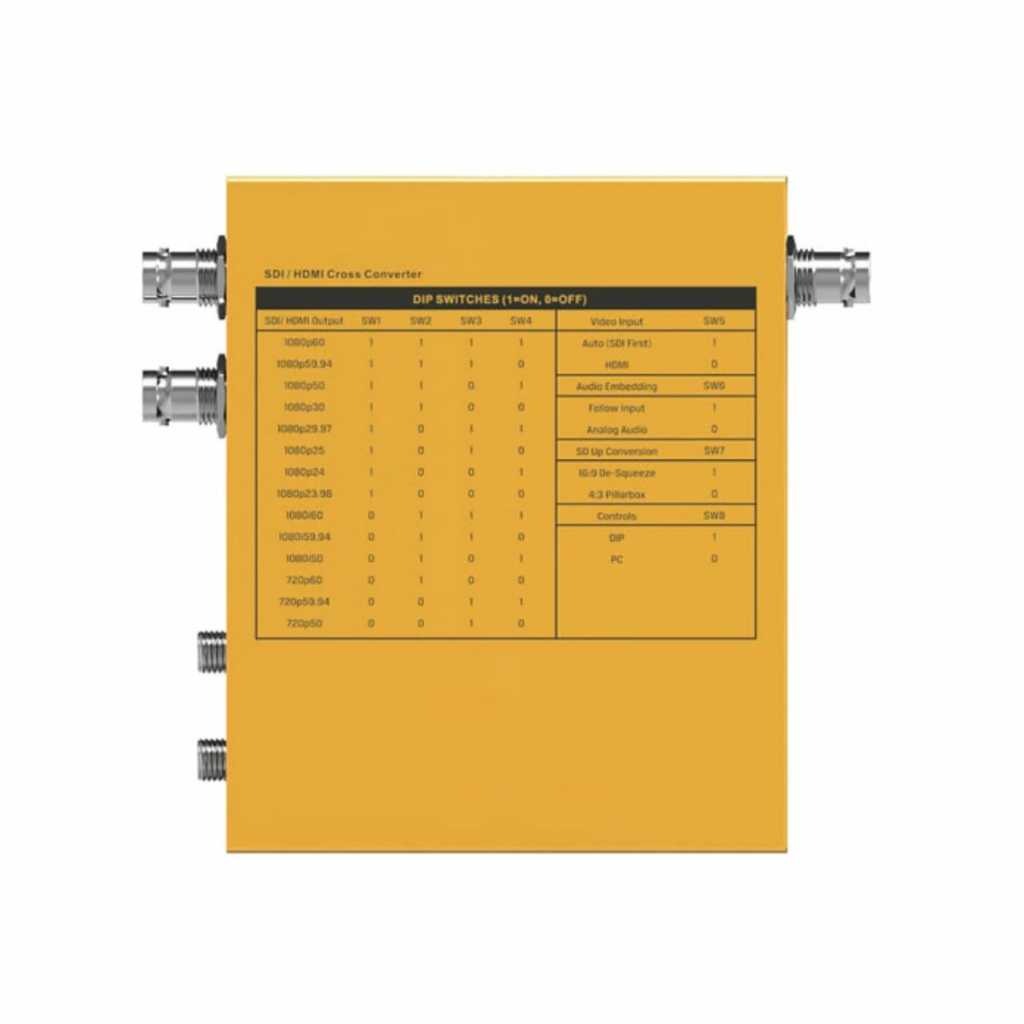

| Control Options | DIP Switches + PC Software (USB) |
| USB Interface | Micro-USB (Power, Control, Firmware) |
| Video Standards | SMPTE 259M / 292M / 424M |
| Power Consumption | Approx. 4W |
| Build Type | Compact Metal Body |
| Dimensions | 125.5 × 104 × 24.5 mm |
| Weight | Approx. 485 g |
| Operating Temperature | -20°C to 60°C |
| Warranty | 3 Year Manufacturer Warranty |
