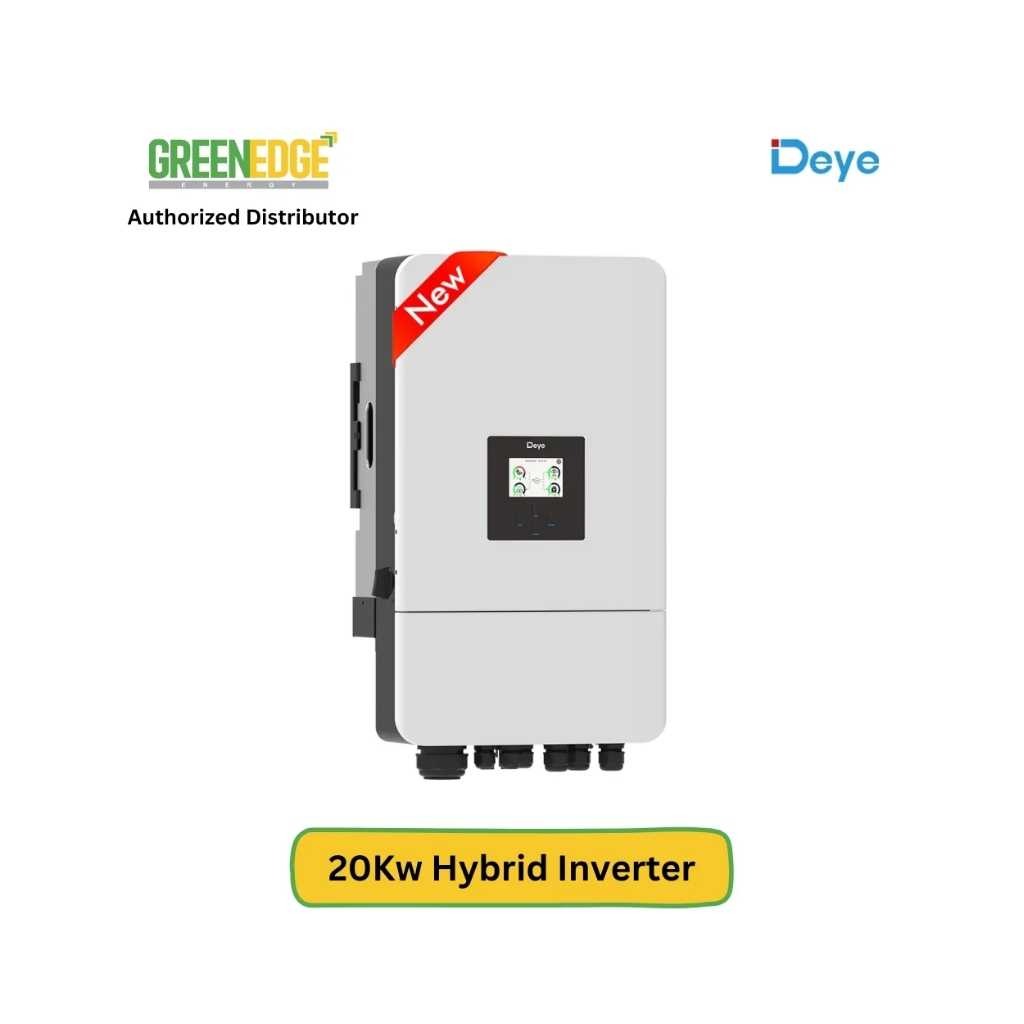

20kW LV Hybrid Solar Inverter
SKU: LVHYB-20KW
20kW LV Hybrid Solar Inverter
₹3,64,000.00
In stock
20kW low voltage hybrid solar inverter with dual MPPT technology, pure sine wave output, and support for on-grid and off-grid solar power systems.
Only 5 currently available.
About item
- SKU:
- LVHYB-20KW
- Weight:
- 48 kg
Guaranteed Safe Checkout
VISA●●PayPalDISCOVERPayG Pay
| Specification | Details |
|---|---|
| Rated Power | 20000W |
| Apparent Power | 25000VA |
| Inverter Type | LV Hybrid Solar Inverter |
| Battery Voltage | Low Voltage Battery System |
| System Type | Hybrid On-Grid / Off-Grid |
| MPPT Support | Dual MPPT |
| Waveform | Pure Sine Wave |
| Output Phase | Three Phase |
| Output Voltage | AC415V |
| Efficiency | Up to 97.5% |
| Cooling Method | Intelligent Air Cooling |
| Protection Rating | IP65 |
| Frequency | 50Hz / 60Hz |
| Communication Interface | RS485 / WiFi / CAN |
| Installation Type | Wall Mount |
| Protection Features | Overload, Over Voltage, Short Circuit, Over Temperature Protection |
| Battery Compatibility | Lithium and Lead Acid Batteries |
| Application | Commercial and Industrial Solar Systems |
| Warranty Period | 5 Years |
| Weight | Approx. 48 kg |
